amazeing

Amazeing is a maze generator/solver application with simulation/visualization.

Installation

Clone the repository and build the project:

git clone https://github.com/eendroroy/amazeing.git
cd amazeing
make install # this will install shell-completions

Usage

Run amazeing --help

Key/Mouse events

• Control+I - Save current screen as png in current directory
• Create
  • G/<Space> - (Re)Generate Maze
  • Additional action in simulation mode (--verbose/-v):
    • LeftClick - Add Source
    • Shift+LeftClick - Remove Source
    • S/<Space> - Start Simulation
    • <Space> - Start/Pause/Resume Simulation
• View - Update mode (--update/-u):
  • LeftClick - Open path
  • Shift+LeftClick - Block Path
  • Control+S - Save current maze to the same file
• Solve
  • LeftClick - Select Source
  • Shift+LeftClick - Select Destination
  • Additional action in simulation mode (--verbose/-v):
    • S/<Space> - Start Simulation
    • <Space> - Start/Pause/Resume Simulation

Example Commands

Generate - single source

# generate 21x21 maze using BFS - single source
amazeing create rectangle --maze bfs_21_21.maze --rows 21 --cols 21 --source 10,10 --procedure bfs --unit-shape square
# short
amazeing C R -m bfs_21_21.maze -r 21 -c 21 -s 10,10 -p bfs -U square

# simulate - multi source
amazeing create rectangle --rows 21 --cols 21 --source 10,10 --procedure bfs --verbose --fps 25 --unit-shape hexagonal
# short
amazeing C R -r 21 -c 21 -s 10,10 -p bfs -v -F 25 -U hexagonal

Generate - multi source

# generate 21x21 maze using BFS - multi source
amazeing create rectangle --maze bfs_21_21.maze --rows 21 --cols 21 --source 7,7 --source 14,14 --procedure bfs --unit-shape sqaure
# short
amazeing C R -m bfs_21_21.maze -r 21 -c 21 -s 7,7 -s 14,14 -p bfs -U square

# simulate - multi source
amazeing create rectangle --rows 21 --cols 21 --source 7,7 --source 14,14 --procedure bfs --verbose --fps 25 --unit-shape hexagonal
# short
amazeing C R -r 21 -c 21 -s 7,7 -s 14,14 -p bfs -v -F 25 -U hexagonal

Update

# update bfs_21_21.maze
amazeing view --maze bfs_21_21.maze --update
# short
amazeing V -m bfs_21_21.maze -u

Solve

# solve bfs_21_21.maze
amazeing solve --maze bfs_21_21.maze --procedure bfs
# short
amazeing S -m bfs_21_21.maze -p bfs

# simulate
amazeing solve --maze bfs_21_21.maze --procedure bfs --verbose --fps 25
# short
amazeing S -m bfs_21_21.maze -p bfs -v -F 25

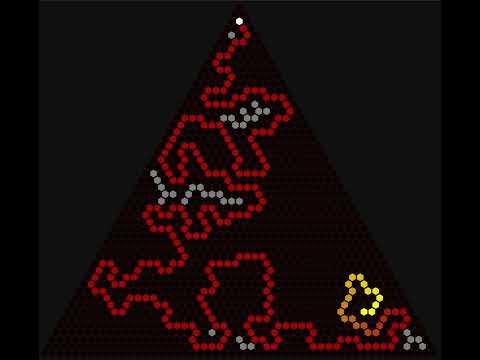

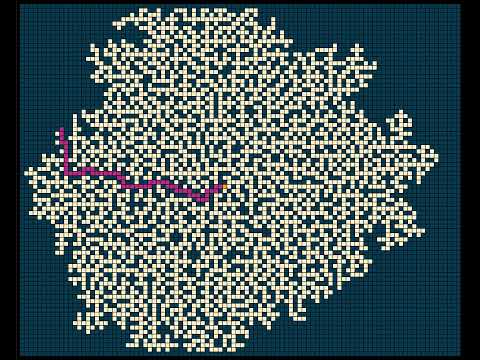

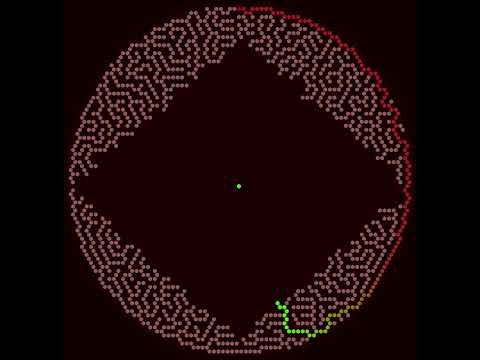

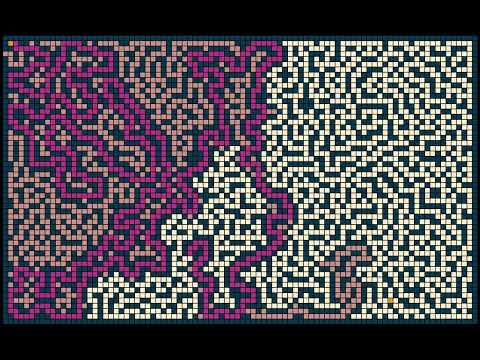

Generate Maze

Algorithm	Shape
Dfs	Hexagonal
Dfs (Multi Source)	Square
Dfs	Square
Bfs	Square

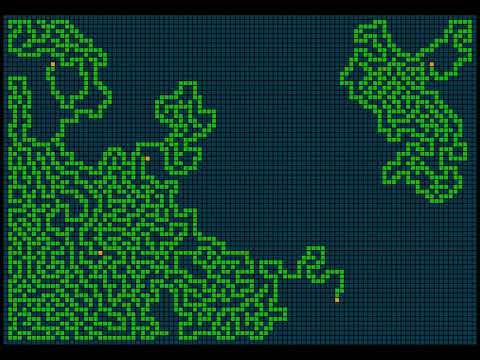

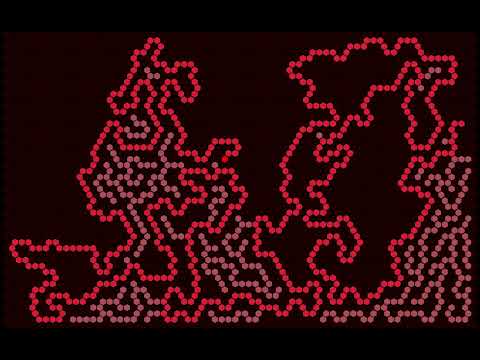

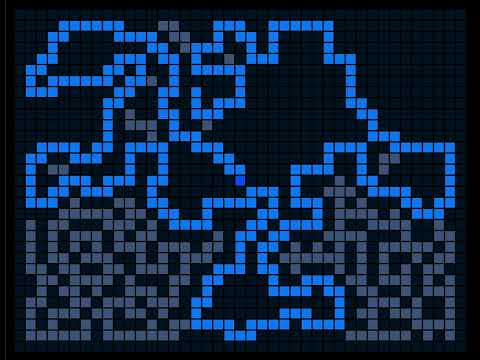

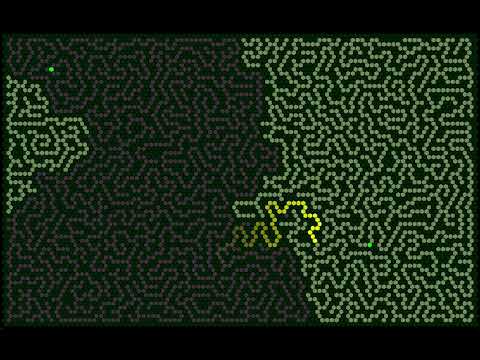

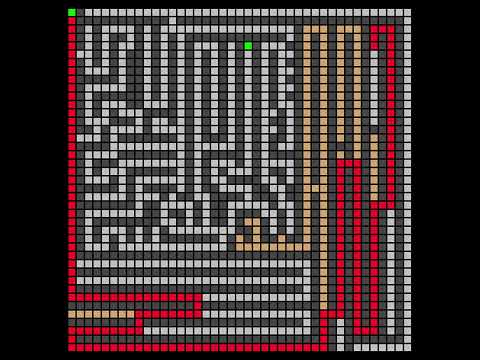

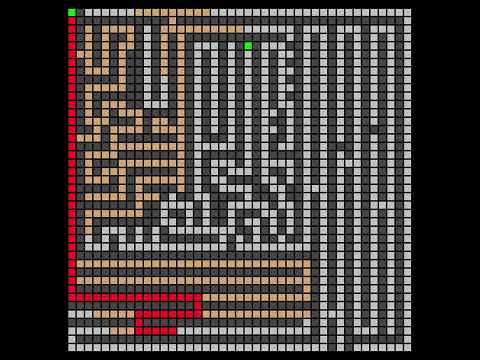

Solve Maze

Algorithm	Shape
A* (Octile)	Hexagon
A* (Manhattan)	Square
DFS	Square
BFS	Square

Others

Color scheme generator

License

This project is licensed under the GNU AGPL-3.0 License. See the LICENSE file for more details.
